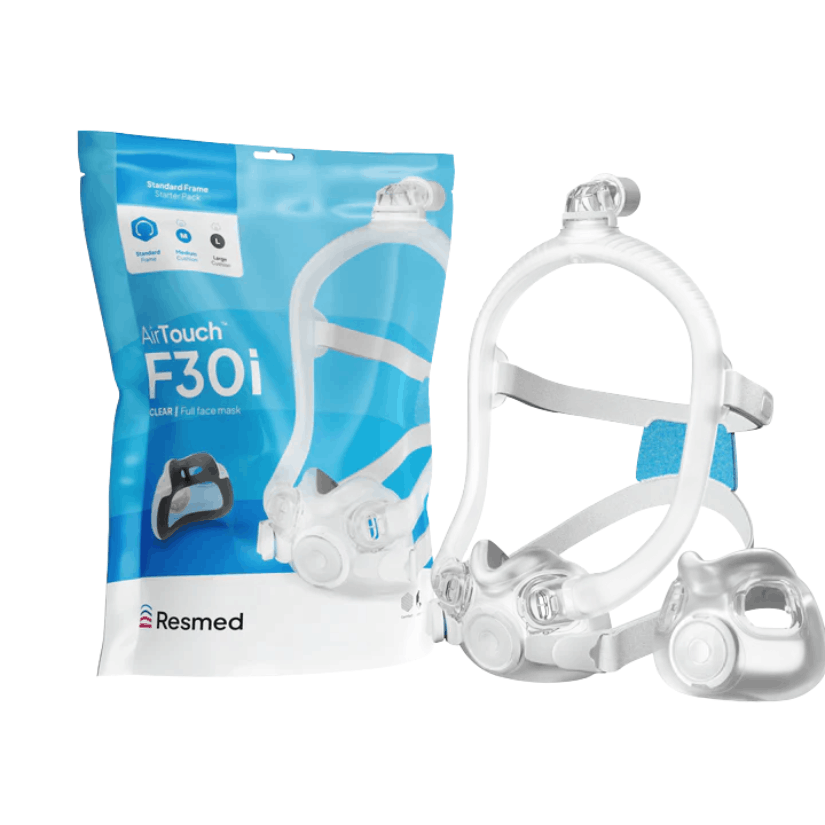

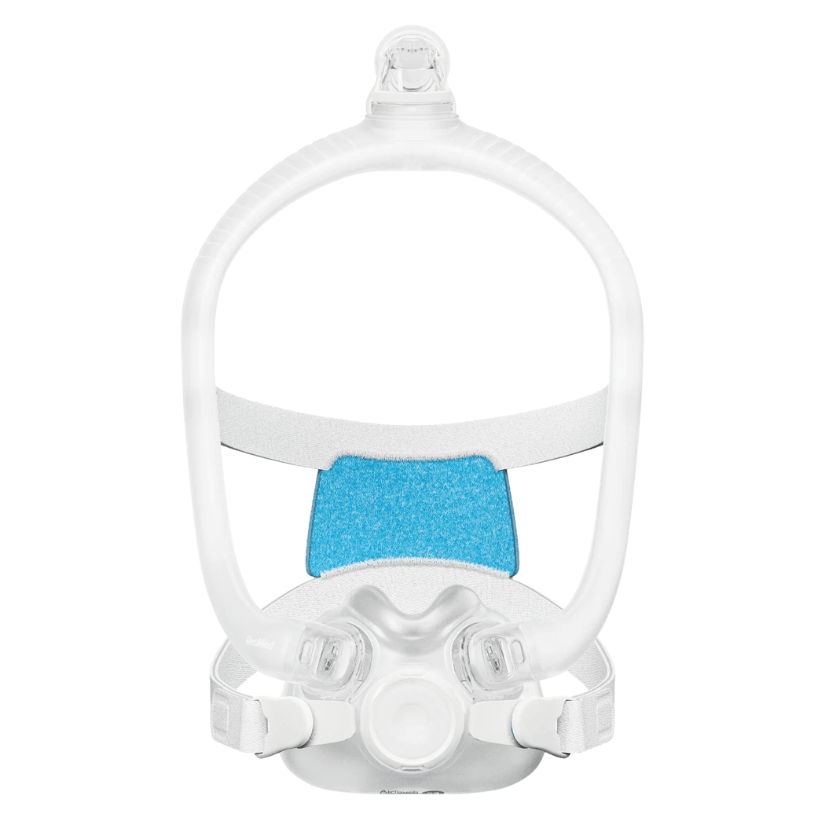

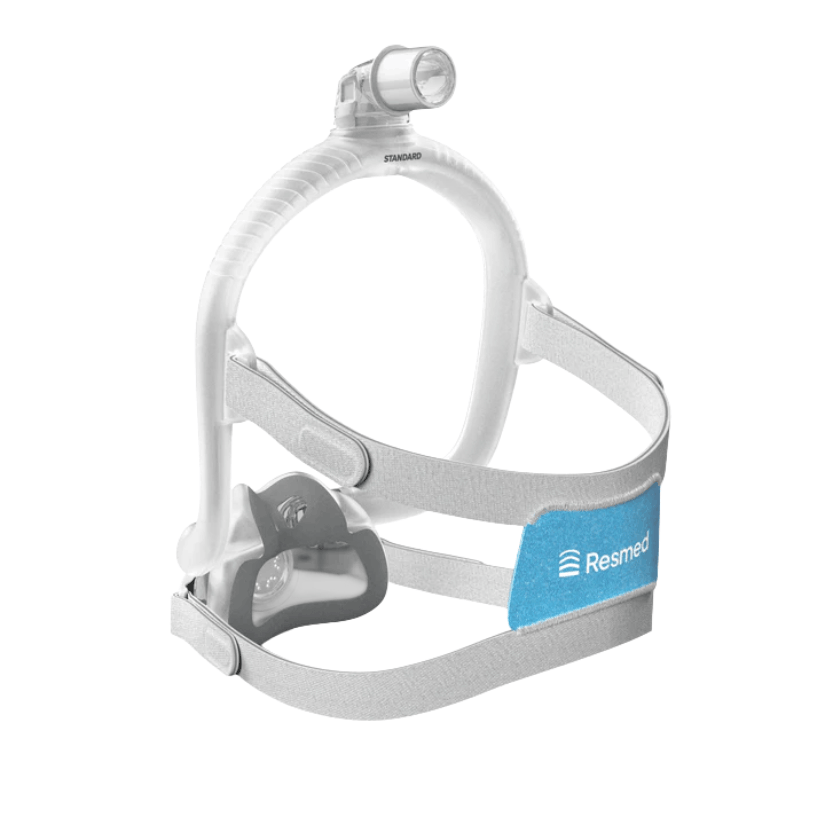

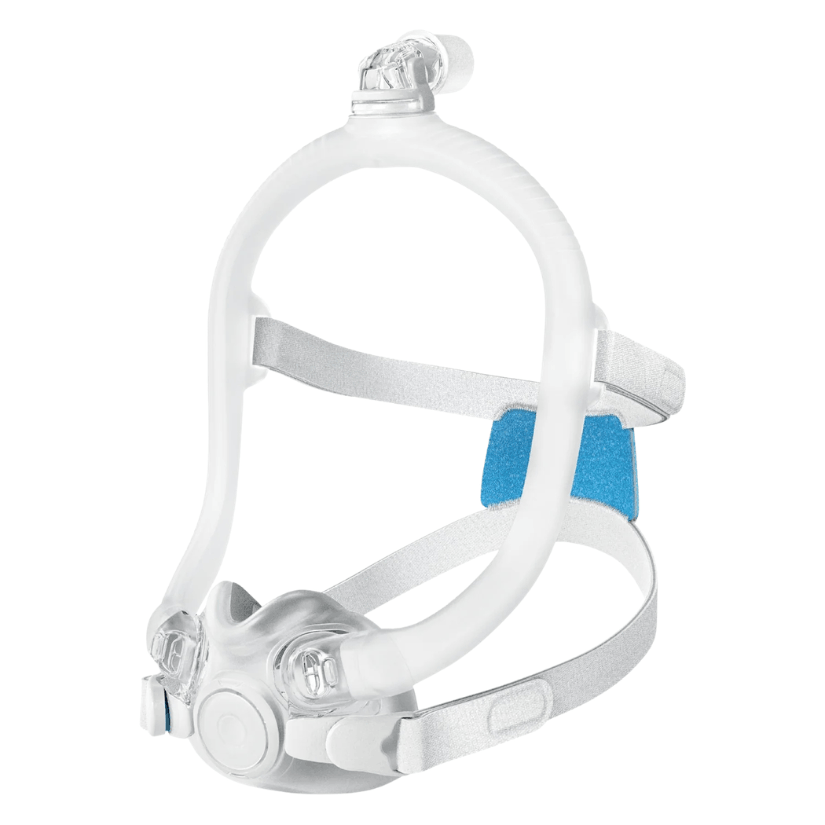

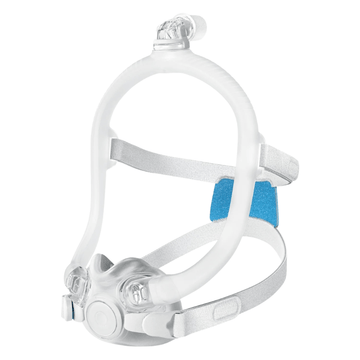

Resmed AirTouch F30i Clear Full Face CPAP Mask

The Resmed AirTouch F30i Clear Full Face CPAP Mask is engineered to maintain a reliable seal while offering full freedom of movement for active sleepers. Featuring an under-the-nose ComfiSoft cushion made from moisture-wicking, silicone-coated fabric, it keeps skin cooler and minimizes facial pressure points throughout the night.

With a top-of-the-head tubing connection and 360-degree rotation, this mask eliminates hose drag and allows seamless position changes. Integrated QuietAir diffused venting operates at just 20 dBA to reduce noise disturbance for both the user and their bed partner.

Key Features

Highlights

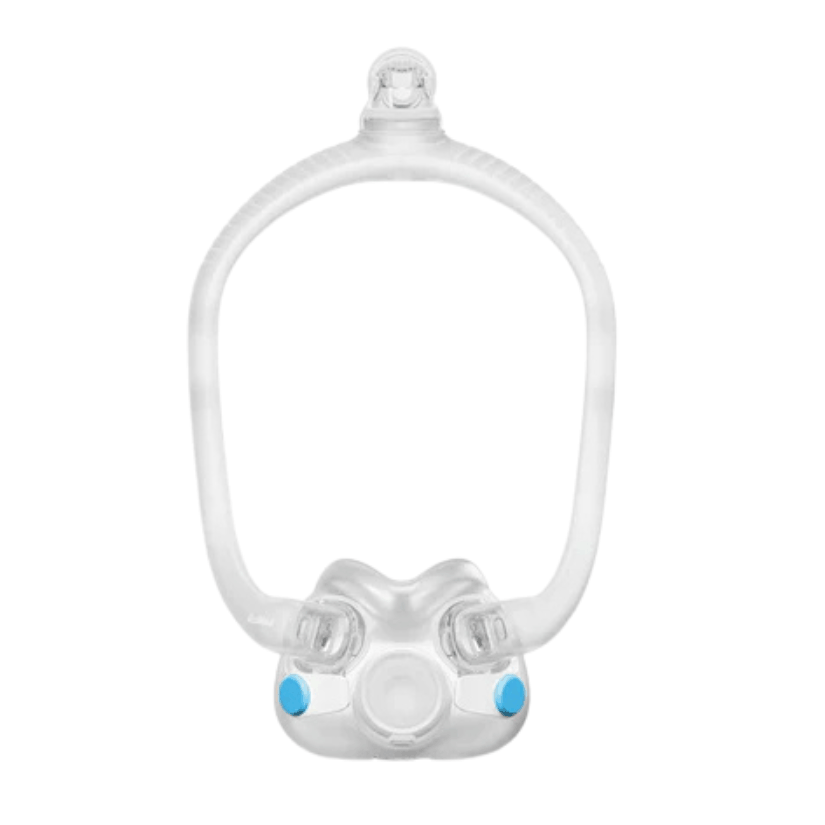

• Flexible, Durable Mask Frame: The AirTouch™ F30i’s flexible, lightweight mask frame is made from a durable polymer structure engineered to reduce heat buildup and surface friction. Its design helps to distribute tension evenly across the frame to help improve seal security and reduce pressure points around the cheeks and nose.
• AdaptiSeal™ Technology: Combines comfort and the performance of a reliable seal with Resmed's ComfiSoft™ silicone-coated fabric cushion and AdaptiSeal™ technology that contours to facial shape without rigid plastic. The design of the nasal septum bridge is engineered to hold the shape of the cushion to create a comfortable and reliable seal.
• Minimal Contact Design: The top-of-the-head tubing connection and 360° elbow rotation prevents tubing pull, providing freedom of movement in a minimal contact design.
• QuietAir™ Diffused Venting: The built-in QuietAir™ venting gently diffuses airflow to help make sleep apnea treatment more peaceful.

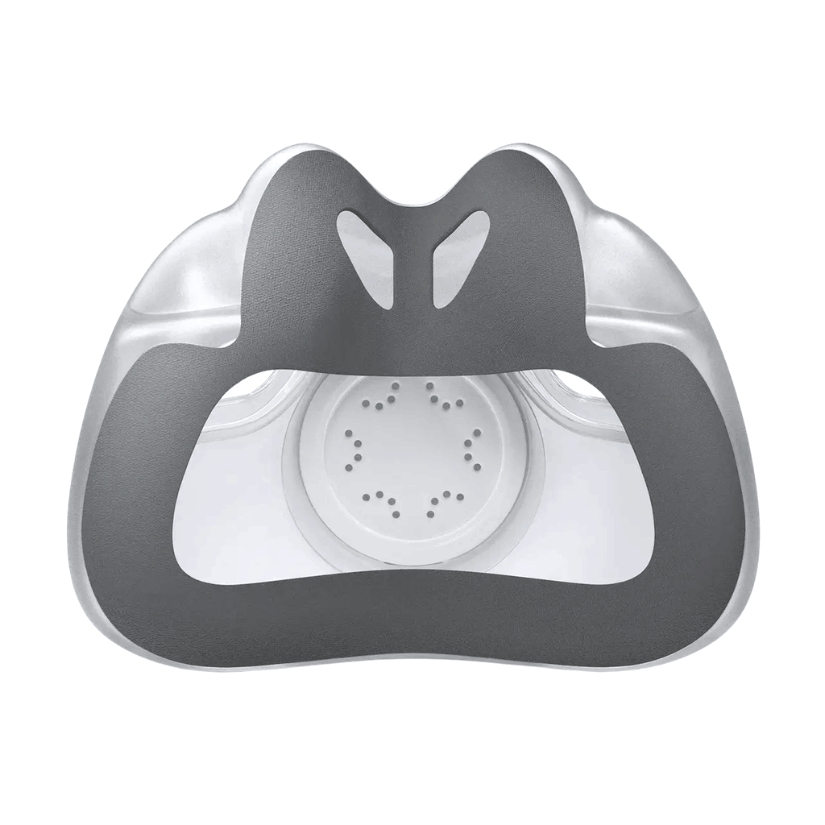

• UltraCompact™ ComfiSoft™ Cushions: The F30i's ComfiSoft™ cushion features moisture-wicking silicone-coated fabric that helps to keep the nose and mouth area cooler, and Resmed's UltraCompact™ design offers a minimal contact feel.
• Magnetic Headgear Clips, Quick-Release Elbow: The magnetic clips and quick-release elbow simplify the process of putting on and taking off the mask.

Materials & care

Sizing & fit

• Frame System Size Options:
• Small Frame/Small-Wide Cushion - AirTouch™ F30i Clear Mask System - 62477
• Small Frame/Medium Cushion - AirTouch™ F30i Clear Mask System - 62478
• Standard Frame/Small-Wide Cushion - AirTouch™ F30i Clear Mask System - 62480
• Standard Frame/Medium Cushion - AirTouch™ F30i Clear Mask System - 62481
• Standard Frame/Large Cushion - AirTouch™ F30i Clear Mask System - 62482
• Large Frame/Medium Cushion - AirTouch™ F30i Clear Mask System - 62484
• Large Frame/Large Cushion - AirTouch™ F30i Clear Mask System - 62485
• Optional Headgear Sizes:

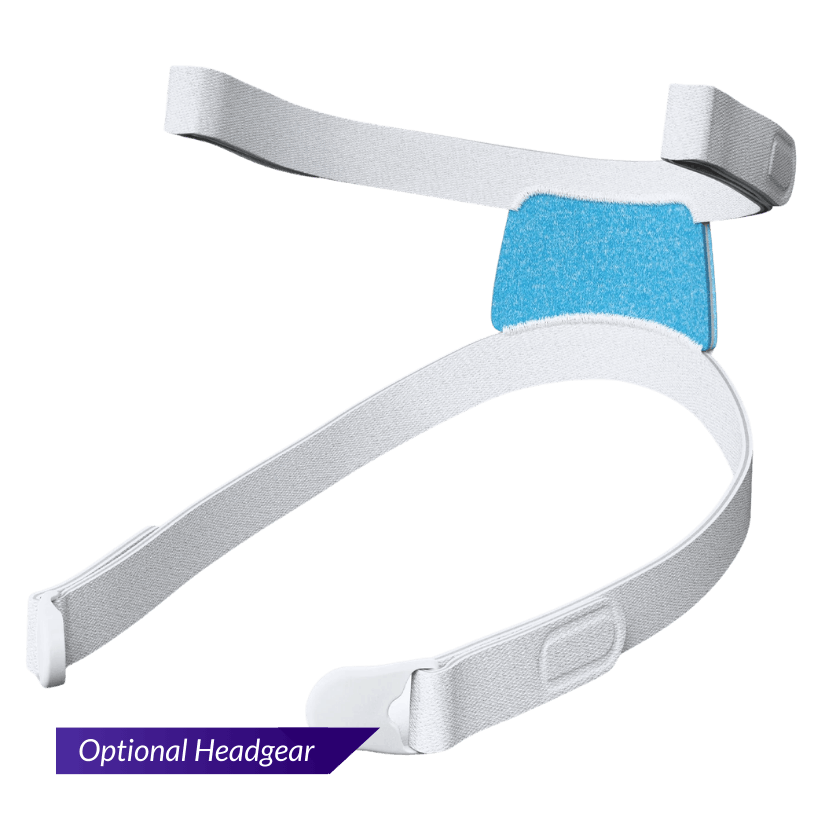

• AirTouch™/AirFit™ F30i/X30i Headgear (One-size-fits all adjustable headgear) - 63372

Size chart

• Small Frame with Small-Wide Cushion
• Small Frame with Medium Cushion
• Standard Frame with Small-Wide Cushion
• Standard Frame with Medium Cushion
• Standard Frame with Large Cushion
• Large Frame with Medium Cushion
• Large Frame with Large Cushion
• AirTouch/AirFit F30i/X30i Headgear: One size fits all (adjustable)

Compatibility

• Breathing Style: Mouth Breathers
• Sleeping Style: Back Sleepers, Side Sleepers, Active Sleepers
• Additional Considerations: High Pressure Settings, Chronic Allergies or Nasal Congestion, Light Co-Sleepers, Sensitive Skin, Minimal Contact

How to use

Assembling Your Mask:

Refer to the assembly diagrams in these instructions.

1. Align and insert the frame connector tab into the cushion slot and press down until it clicks. Repeat on the other side.
2. Attach the elbow to the top of the frame until it clicks.
3. With the Resmed logo facing outwards and up, insert the upper headgear straps into the frame from the inside and fold the fastening tabs over to secure.

Note: If the elbow ring detaches, re-insert into the top of the frame.

Fitting Your Mask:

Remove all packaging before using the mask.

Refer to the fitting images inside the front cover of these instructions.

1. Connect the air tubing from the device to the elbow.
2. Squeeze the side buttons on the elbow and pull from the frame. Put the elbow and air tubing aside for now.
3. Twist and pull both magnetic clips away from the frame connectors.

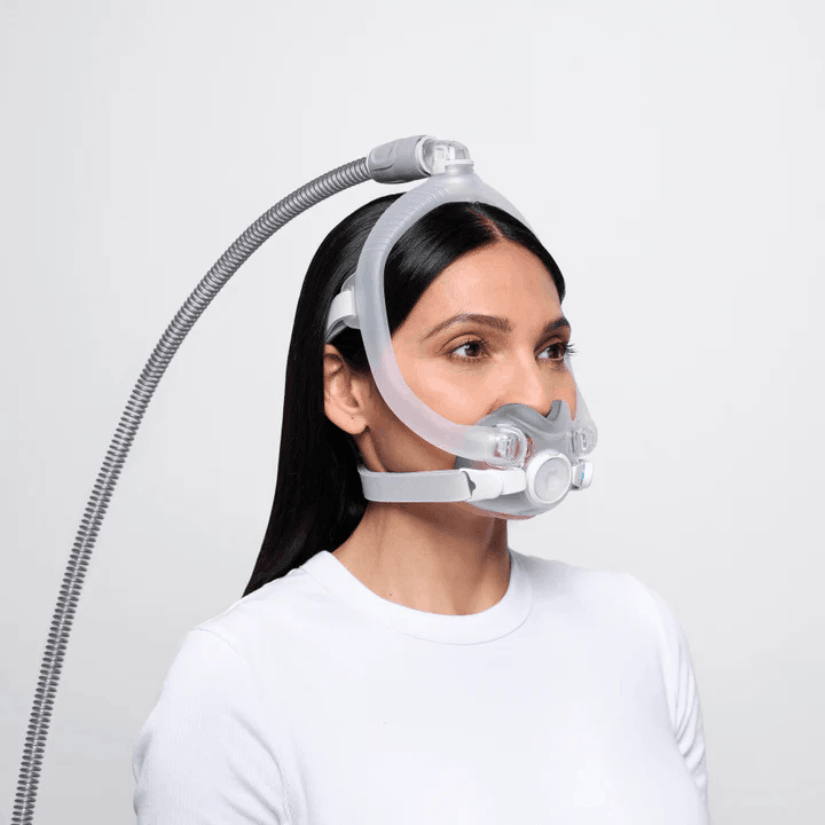

4. Place the cushion under the nose and ensure it sits comfortably against the face. With the Resmed logo on the headgear facing up, pull the headgear and frame over the head.
5. Bring the lower headgear straps under the ears and attach the magnetic clips to the frame connectors.
6. Undo the fastening tabs on the upper headgear straps and pull evenly. Repeat with the lower headgear straps.
7. Attach the elbow to the top of the frame. The mask should now be positioned as shown.

Disassembling Your Mask:

If the mask is connected to a device, disconnect the device air tubing from the mask elbow.

Refer to the disassembly diagrams in these instructions.

1. Undo the fastening tabs on the upper headgear straps and pull from the frame. Keep the magnetic clips attached to the lower headgear straps.
2. Squeeze the side buttons on the elbow and detach from the frame.
3. Grip the frame connector and lift to unclip from the cushion. Repeat on the other side

Note: After detaching the headgear, close the fastening tabs to prevent it from damaging the fabric sleeves when handling.

Warranty

90-day limited manufacturer's warranty

What's included

• 1 — AirTouch™ F30i Clear Mask Frame (of selected size)
• 1 — AirTouch™ F30i ComfiSoft™ Mask Cushion (of selected size)
• 1 — Quick-release Elbow
• 1 — User Guide
