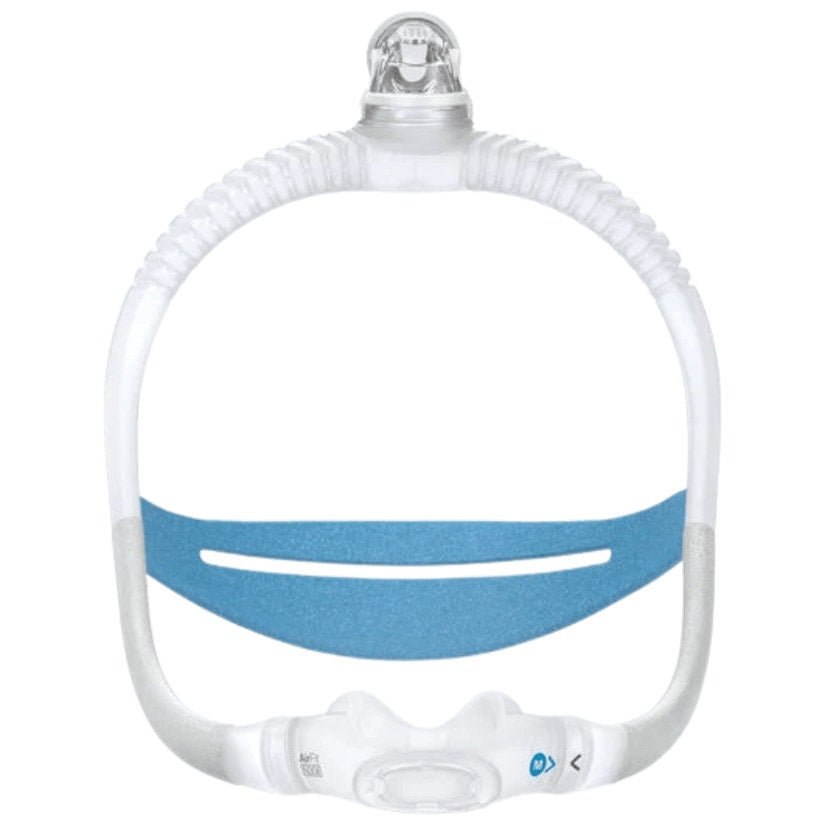

Resmed AirFit N30i Nasal CPAP Mask

The Resmed AirFit N30i Nasal CPAP Mask features an innovative curved silicone nasal cradle cushion that sits comfortably under the nose without covering the entire face or inserting into the nostrils. Engineered with a flexible SpringFit frame and top-of-the-head tube connection with a 360-degree swivel, it allows complete freedom of movement for active and side sleepers.

Equipped with QuietAir vent technology operating at only 24 dBA, this mask ensures whisper-quiet airflow to promote undisturbed sleep for you and your partner. Its minimal three-part assembly includes a quick-release elbow for seamless disconnection, making nightly use and regular cleaning straightforward and convenient.

Key Features

Highlights

• Perfect for active sleepers and side sleepers
• Tubing connects at the top of the head
• Minimal mask cushion design with QuietAir™ vent technology
• Lightweight, flexible frame
• Quiet operation at only 24 dBA

Materials & care

Sizing & fit

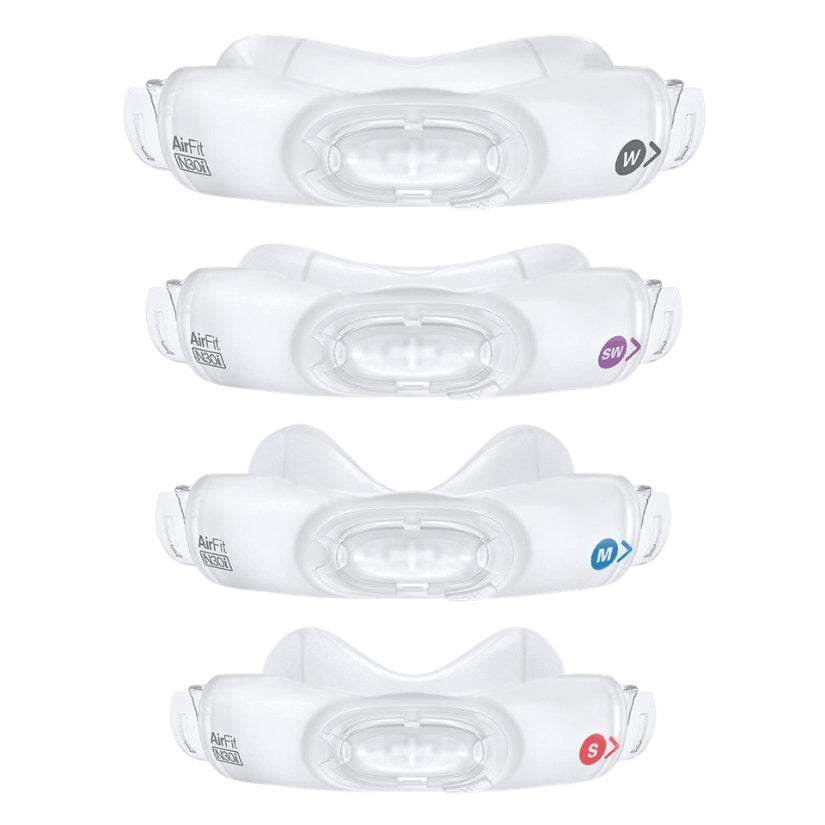

Frame Assembly Options:

• Small Frame / Small Cushion - AirFit™ N30i Frame Assembly - 63803

• Small Frame / Medium Cushion - AirFit™ N30i Frame Assembly - 63805

• Small Frame / Wide Cushion - AirFit™ N30i Frame Assembly - 63807

• Small Frame / Small-Wide Cushion - AirFit™ N30i Frame Assembly - 63809

• Standard Frame / Small Cushion - AirFit™ N30i Frame Assembly - 63802

• Standard Frame / Medium Cushion - AirFit™ N30i Frame Assembly - 63804

• Standard Frame / Wide Cushion - AirFit™ N30i Frame Assembly - 63806

• Standard Frame / Small/Wide Cushion - AirFit™ N30i Frame Assembly - 63808

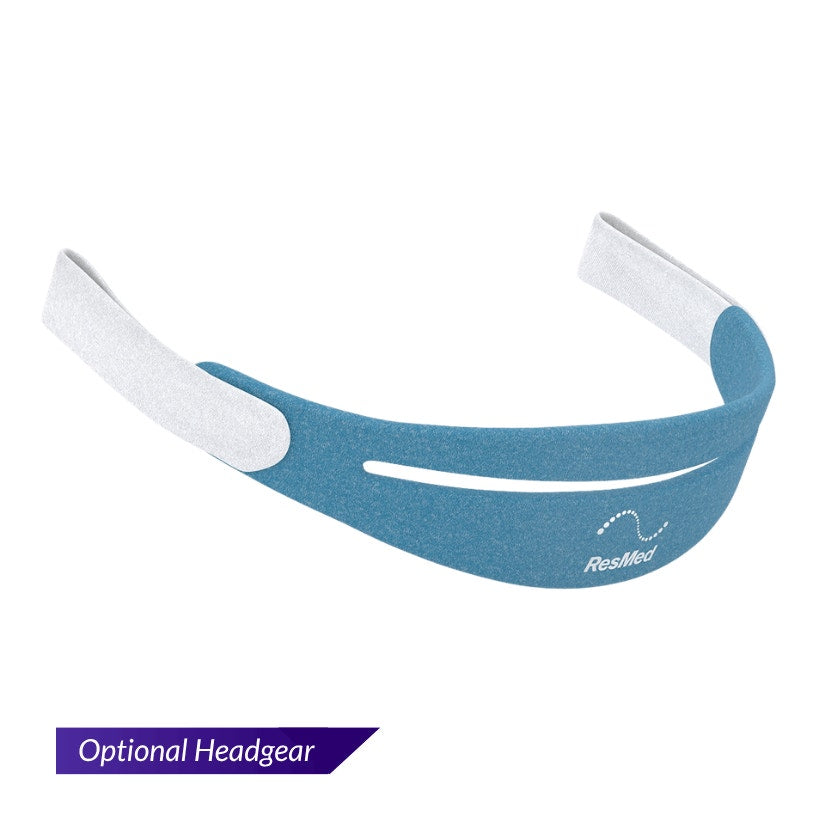

Headgear:

• AirFit™ N30i/P30i Headgear - 63814

Compatibility

Breathing Style:

• Nasal Breathers
• Mouth Breathers (when paired with a CPAP mask chinstrap)

Sleeping Style:

• Back Sleepers
• Side Sleepers
• Active Sleepers

Additional Considerations:

• High Pressure Settings
• Glasses Wearers
• Claustrophobia
• Facial Hair
• Full Field of View for Reading or Watching TV Before Bed
• Tossing and Turning During Sleep

How to use

Assembling Your Mask:

1. Connect the elbow into the top of the frame until it clicks.
2. Insert the headgear strap into the frame and fold the fastening tabs backwards.
3. Insert the ends of the frame into the cushion, ensuring that the arrows on the cushion and frame are aligned. Note: If the elbow ring detaches, re-insert into the top of the frame.

Fitting Your Mask:

Refer to the fitting diagrams in these instructions.

1. Pull the frame and headgear over your head until the elbow is positioned on top and the headgear is behind your head.
2. Place the cushion under your nose. For the AirFit P30i mask, align the pillows into your nostrils.
3. Tighten or loosen the headgear until the cushion fits comfortably under your nose.
4. Squeeze the side buttons on the elbow and detach from the frame. Connect the air tubing from your device to the elbow, then reattach to the frame.

Disassembling Your Mask:

If your mask is connected to a device, disconnect the device air tubing from the mask elbow. Refer to the disassembly diagrams in these instructions.

1. Pull the cushion from the frame.
2. Undo the fastening tabs on the headgear strap and pull it from the frame.
3. Squeeze the side buttons on the elbow and detach from the frame. Note: The QuietAir vent can be removed to allow inspection of the vent holes.

Warranty

90-day limited manufacturer's warranty

What's included

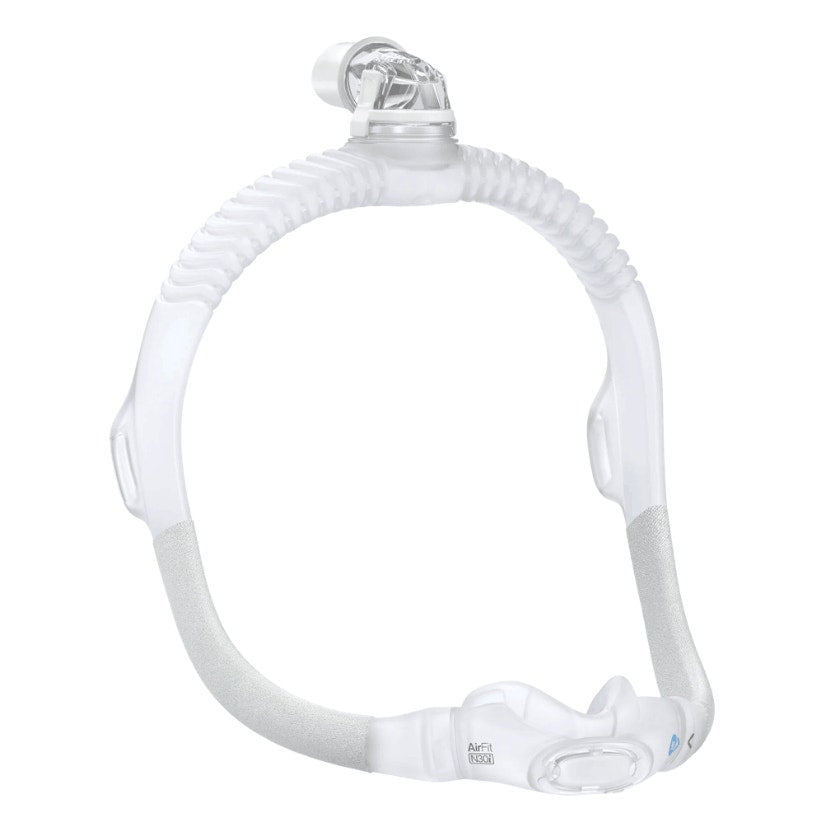

• 1 — AirFit™ N30i SpringFit™ Mask Frame (of selected size)

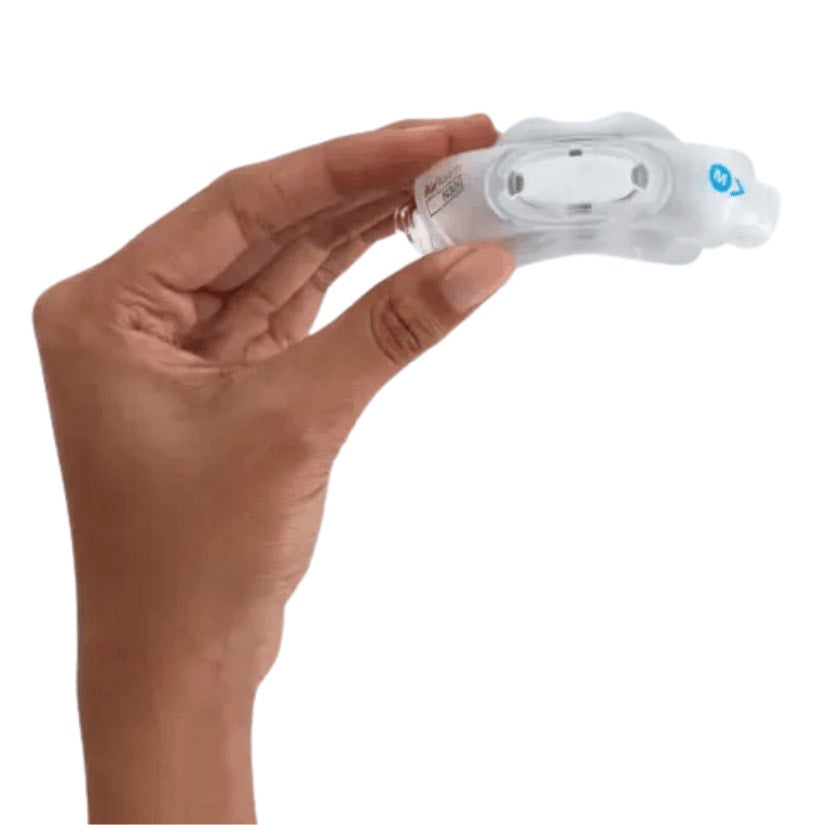

• 1 — AirFit™ N30i Nasal Cushion (of selected size)

• 1 — QuietAir™ Elbow

• 1 — AirFit™ N30i Headgear

Downloads

• AirFit N30i / P30i Sizing Guide PDF
