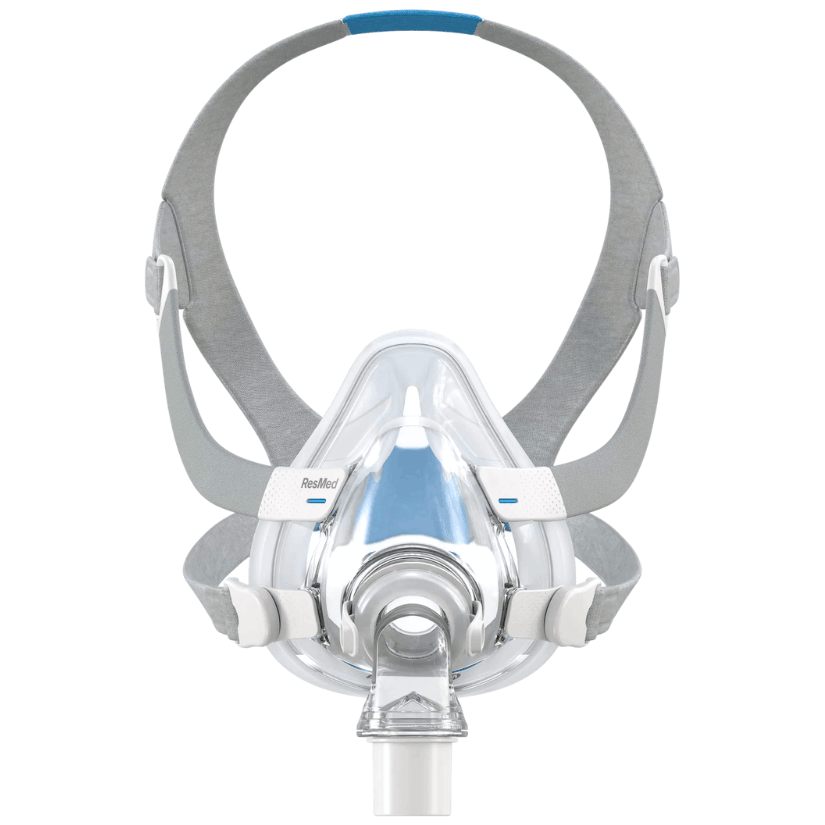

Resmed AirFit F20 Full Face CPAP Mask

The Resmed AirFit™ F20 Full Face CPAP Mask features an adaptive design with an InfinitySeal™ silicone cushion engineered to contour comfortably to a wide variety of facial structures. Its lightweight, padded spring frame supports a clear line of sight without a forehead bar, ensuring reliable therapy performance even under high CPAP pressure settings.

Equipped with a QuietAir™ diffuse vent and a quick-release elbow, this mask offers quiet operation and easy detachment from tubing during the night. The modular design is compatible with AirTouch™ F20 memory foam cushions and supports optional magnetic-clip headgear configurations for straightforward fitting and everyday convenience.

Key Features

Highlights

• InfinitySeal™ cushion maintains a tight seal that adapts to facial contours.
• Quick-Release elbow allows for easy detachment from the tubing.
• QuietAir™ vent minimizes noise.
• Flexible mask frame and cushion sizes fit up to 97% of patients.
• Full face design with open sight line.
• Appropriate for those with a high-pressure CPAP prescription.
• Spring frame includes integrated padding.
• Resmed AirFit™ F20 is compatible with the AirTouch™ F20 memory foam cushion.

Materials & care

Disassemble the mask frame, cushion, and elbow before cleaning. Hand wash the silicone cushion and plastic components daily in warm water with mild liquid detergent, rinse thoroughly, and allow to air dry out of direct sunlight. Do not clean with harsh chemicals, bleach, or alcohol.

Sizing & fit

• Small - AirFit™ F20 Mask System - 63460
• Medium - AirFit™ F20 Mask System - 63461
• Large - AirFit™ F20 Mask System - 63462

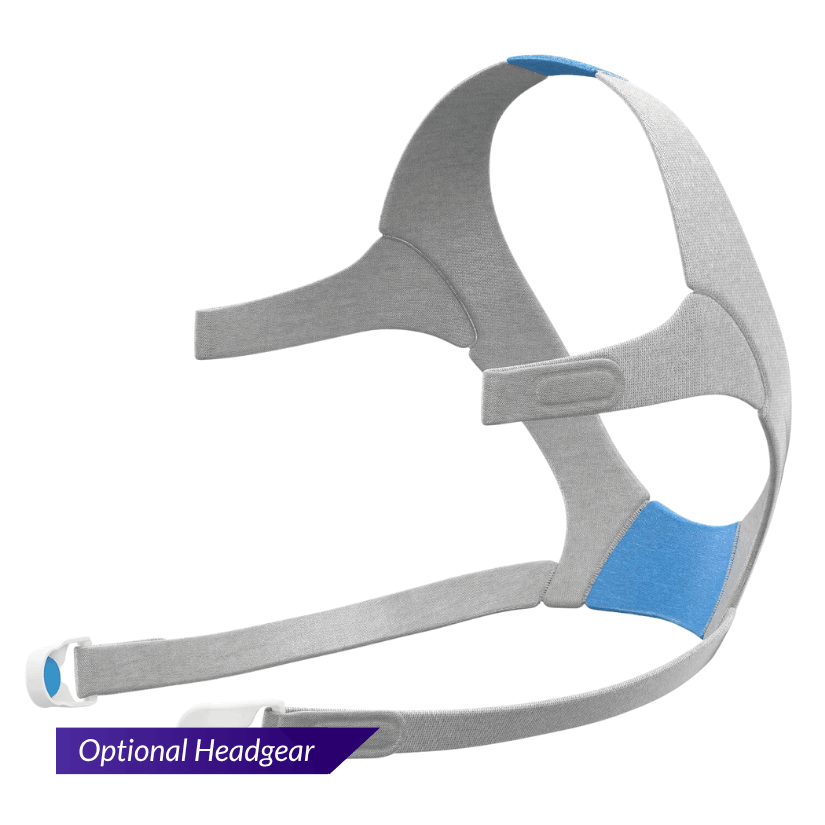

• Small - AirFit™ F20 Headgear - 63470
• Standard - AirFit™ F20 Headgear - 63471
• Large - AirFit™ F20 Headgear - 63472

Size chart

The AirFit F20 mask frame and silicone cushion are available in Small, Medium, and Large sizes to accommodate various facial structures. Optional headgear is available in Small, Standard, and Large sizes.

Compatibility

To keep the AirFit™ F20 in good working order, and sleep therapy effective, replace individual parts when worn out. The AirFit™ F20 cushion, the F20 headgear with clips, and the AirFit™ mask assembly kit are available.

Add an AirMini™ mask connector to an AirMini™ travel CPAP machine to use the F20 as a travel mask.

How to use

Refer to the assembly diagrams in these instructions.

1. Attach the cushion to the frame by aligning the circular openings and pushing together until retained.
2. With the Resmed logo on the headgear facing outside and upright, thread the upper headgear straps into the frame slots from the inside. Fold them over to secure.

Fitting Your AirFit™ F20 Mask

1. Twist and pull both magnetic clips away from the frame.
2. Ensure that the Resmed logo on the headgear is facing outwards and is upright. With both lower headgear straps released, hold the mask against your face and pull the headgear over your head.
3. Bring the lower straps below your ears, and attach the magnetic clip to the frame.
4. Undo the fastening tabs on the upper headgear straps. Pull the straps evenly until the mask is stable and positioned as shown in the illustration. Reattach the fastening tabs.
5. Undo the fastening tabs on the lower headgear straps. Pull the straps evenly until the mask is stable and sits comfortably on the chin. Reattach the fastening tabs.
6. Connect the device air tubing to the elbow. Attach the elbow to the mask by pressing the side buttons and pushing the elbow into the mask, ensuring it clicks in on both sides.
7. Your mask and headgear should be positioned as shown in the illustration.

Disassembling Your AirFit™ F20 Mask

If the mask is connected to your device, disconnect the device air tubing from the elbow.

1. Undo the fastening tabs on the upper headgear straps. Pull the straps out of the frame.*
2. Remove the elbow from the mask by pressing the side buttons and pulling the elbow away.
3. Hold the side of the frame between the upper and lower arms. Gently pull the cushion away from the frame.

* Tip: Keep the magnetic clips attached to the lower headgear straps to easily distinguish the upper and lower straps when reassembling.

Warranty

90-day limited manufacturer's warranty

What's included

• 1 — AirFit™ F20 Mask Frame
• 1 — AirFit™ F20 Cushion
• 1 — QuietAir Elbow
• Optional: AirFit™ F20 Headgear
• Optional: 2 — Magnetic Clips

Downloads

• Download AirFit F20 Sizing Guide
• Download AirFit F20 Fitting Guide
• Download AirFit F20 User Guide
• Download CPAP Replacement Schedule
