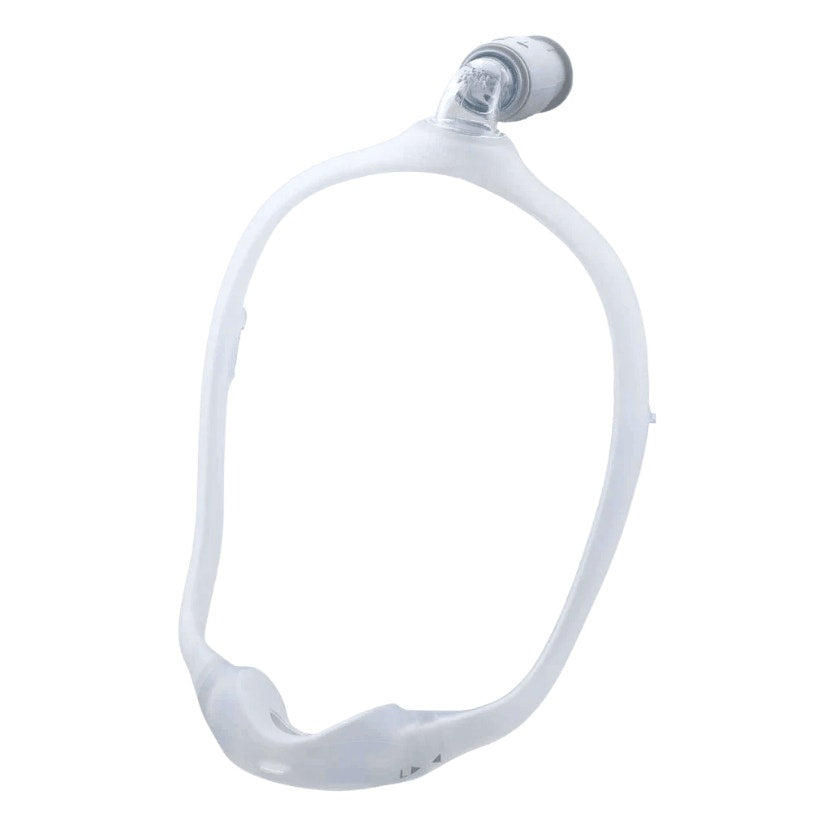

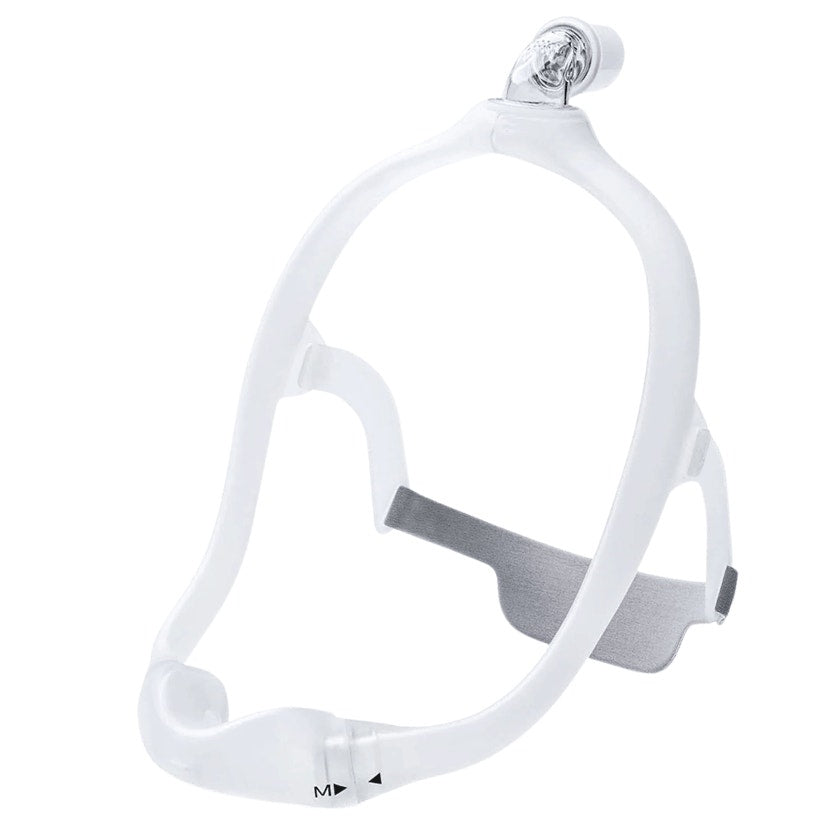

Philips Respironics DreamWear Nasal CPAP Mask

The Philips Respironics DreamWear Nasal CPAP Mask features an innovative minimal-contact design that delivers exceptional comfort and freedom during sleep. Its top-of-the-head swivel connector rotates 360 degrees to keep tubing entirely out of your face, making it ideal for active and side sleepers.

Crafted with a soft, flexible silicone frame and an under-the-nose cushion, this mask prevents uncomfortable pressure points on the nasal bridge while preserving a clear line of sight. Modular compatibility allows seamless integration with other DreamWear cushions for a fully customized sleep therapy experience.

Key Features

Highlights

• Minimal-contact design provides greater freedom of movement
• Top-of-the-head swivel connector turns 360 degrees to keep your tube out of your face
• The soft silicone frame and nasal cushion is all that touches your face
• Curved cushion cradles underneath your nose for a wide field of vision
• Also compatible with DreamWear gel pillows and DreamWear full face CPAP mask

Materials & care

Sizing & fit

• Small Cushion, Small Frame DreamWear Nasal Mask - without Headgear - 1116710
• Medium Cushion, Small Frame DreamWear Nasal Mask - without Headgear - 1116711
• Large Cushion, Small Frame DreamWear Nasal Mask - without Headgear - 1116712
• Medium Wide Cushion, Small Frame DreamWear Nasal Mask - without Headgear - 1116713
• Small Cushion, Medium Frame DreamWear Nasal Mask - without Headgear - 1116705
• Medium Cushion, Medium Frame DreamWear Nasal Mask - without Headgear - 1116706
• Medium Wide Cushion, Medium Frame DreamWear Nasal Mask - without Headgear - 1116708
• Large Cushion, Medium Frame DreamWear Nasal Mask - without Headgear - 1116707
• Small Cushion, Large Frame DreamWear Nasal Mask - without Headgear - 1116715
• Medium Cushion, Large Frame DreamWear Nasal Mask - without Headgear - 1116716
• Medium Wide Cushion, Large Frame DreamWear Nasal Mask - without Headgear - 1116718
• Large Cushion, Large Frame DreamWear Nasal Mask - without Headgear - 1116717

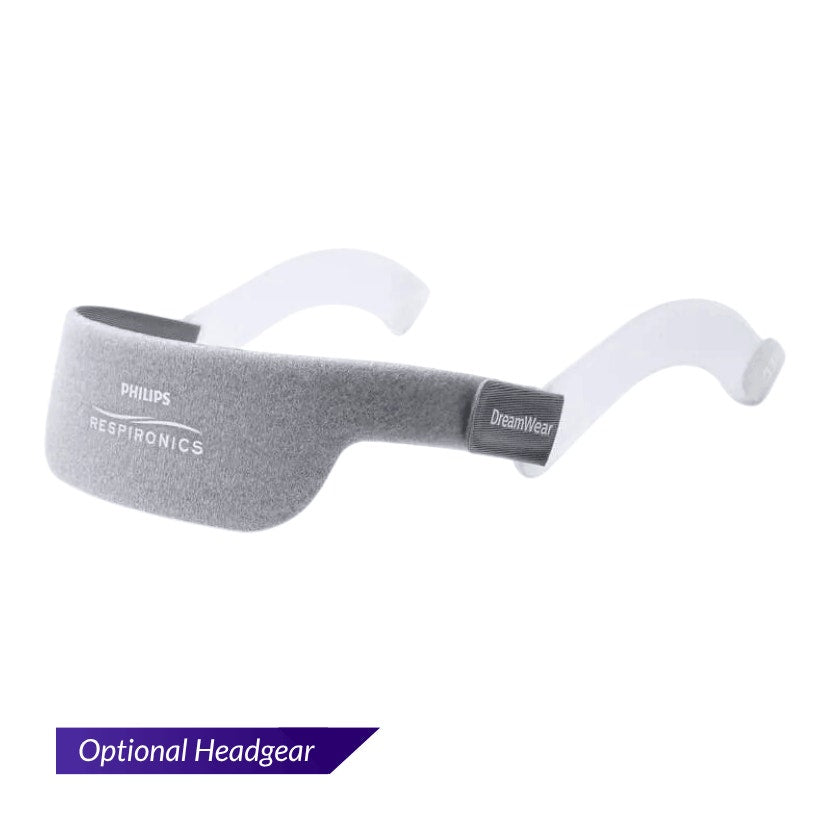

• DreamWear Headgear With Arms - 1116751
• DreamWear Headgear - 1116750 (DISCONTINUED)

Size chart

Frame sizes available: Small (48.3 cm), Medium (50.8 cm), and Large (55.9 cm). Cushion sizes available: Small, Medium, Large, and Medium Wide.

Compatibility

• Breathing Style: Nasal Breathers, Mouth Breathers (when paired with a CPAP mask chinstrap)
• Sleeping Style: Back Sleepers, Side Sleepers, Active Sleepers
• Additional Considerations: High Pressure Settings, Glasses Wearers, Claustrophobia, Facial Hair, Full Field of View for Reading or Watching TV Before Bed, Tossing and Turning During Sleep

How to use

Fitting Your Mask

1. With the mask assembled (see Assembly section), place the cushion under the nose.
2. Position the frame on the top of the head. Tip: For proper sizing, see Cushion sizing and Mask frame selection sections.
3. Pull the headgear over the back

Adjusting Your Mask

1. Peel the headgear tabs away from the fabric. Adjust the strap length. Press the tabs back against the fabric to reattach. Note: Do not overtighten the headgear. Signs of overtightening include redness, sores, or bulging skin around the edges of the mask.
2. Position the mask until it fits comfortably.
3. When finished the elbow should rest at the top of the head.

Removing Your Mask

Tubing Quick Release

1. The elbow is equipped with a tubing quick release. Pull on the tubing quick release and it will disengage from the elbow and come loose with the tubing.

Removing the Mask

1. To keep your adjustments, remove the mask by grasping the cushion and pulling forward away from the nose. Then pull the cushion and mask up and off of the head.

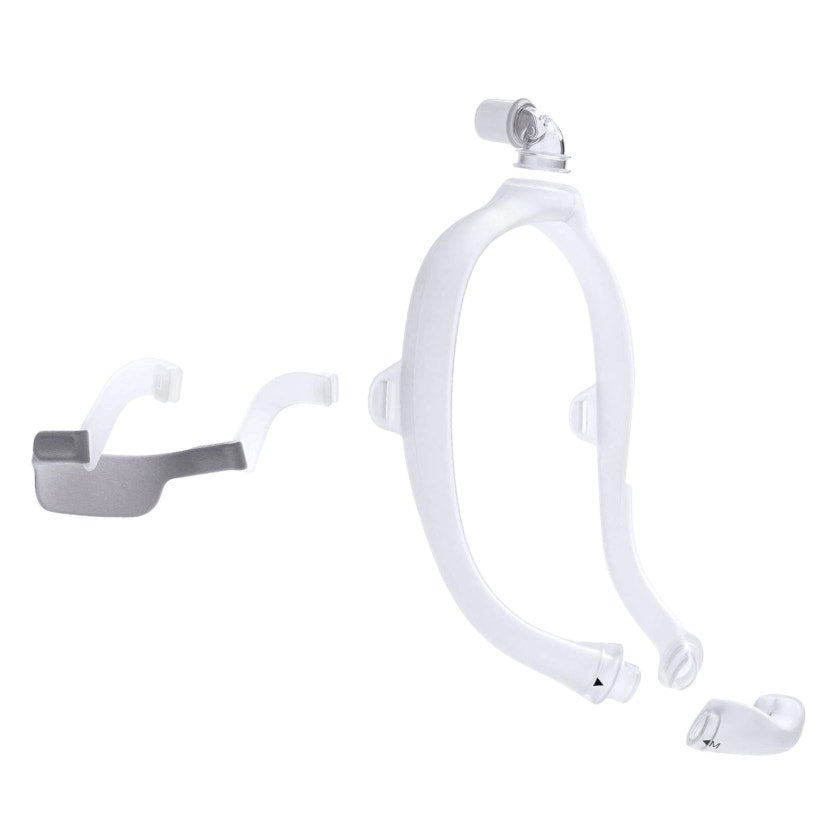

Assembling Your Mask

Align the triangles on the cushion and frame for proper assembly.

• Cushion: Press into the mask frame until the cushion clicks into place. (Fig. 9 & 10). Note: The end of the cushion and the opening in the mask frame are ‘D’ shaped. The cushion end should match the frame.
• Elbow: Insert into the top of the mask frame.
• Tubing quick release: Push the tubing quick release onto the elbow until it clicks into place.
• Fabric sleeves: Wrap the sleeves around the mask frame and press the strips together. Note: The sleeve seams should be on the outside of the frame.
• Headgear assembly: a. Headgear with arms: Push the headgear clip through the mask frame loop. Connect the second clip to the mask frame loop on the other side. Slide the tabs into the slots on the arms and fold backwards. Note: The headgear arms have “L” and “R” symbols to show which side of your head each arm should go on. Once the mask is on, the symbol should face outward with the “L” on the left side of your head and the “R” on the right side of your head. b. Headgear without arms: Slide the tabs into the slots on the mask frame and fold backwards. Note: The Philips Respironics logo will be on the outside and facing up when correctly assembled.

Disassembling Your Mask

Headgear disassembly:

• a. Headgear with arms: Gently pull each headgear clip out of the mask frame loop.
• b. Headgear without Arms: Undo the headgear tabs and pull through the slots in the mask frame.
• Fabric sleeves: Undo the strips and remove from the mask frame.
• Tubing quick release: Pull the tubing quick release from the elbow.
• Elbow: Pull the elbow from the top of the frame.
• Cushion: Pull the cushion from the mask frame.

Warranty

90-day limited manufacturer's warranty

What's included

• 1 — DreamWear Nasal Mask Frame

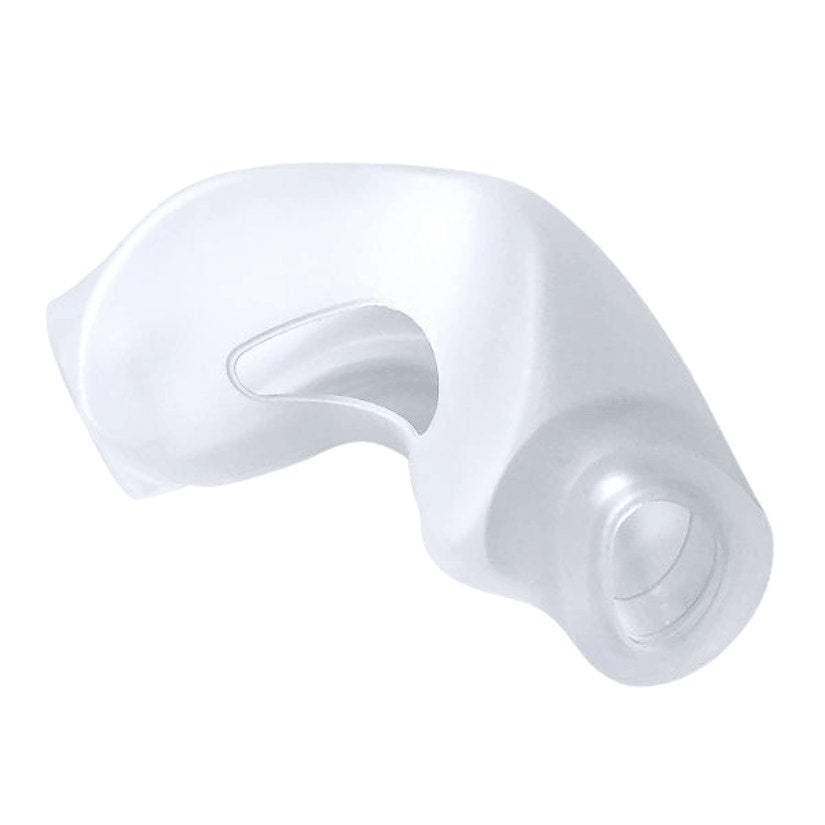

• 1 — Nasal Cushion (of selected size option)
• 1 — Swivel Connector Elbow
• If you select a headgear option: 1 — DreamWear Nasal CPAP Mask Headgear with Arms (Model # 1116751)

Downloads

• CPAP Supplies Replacement Schedule
