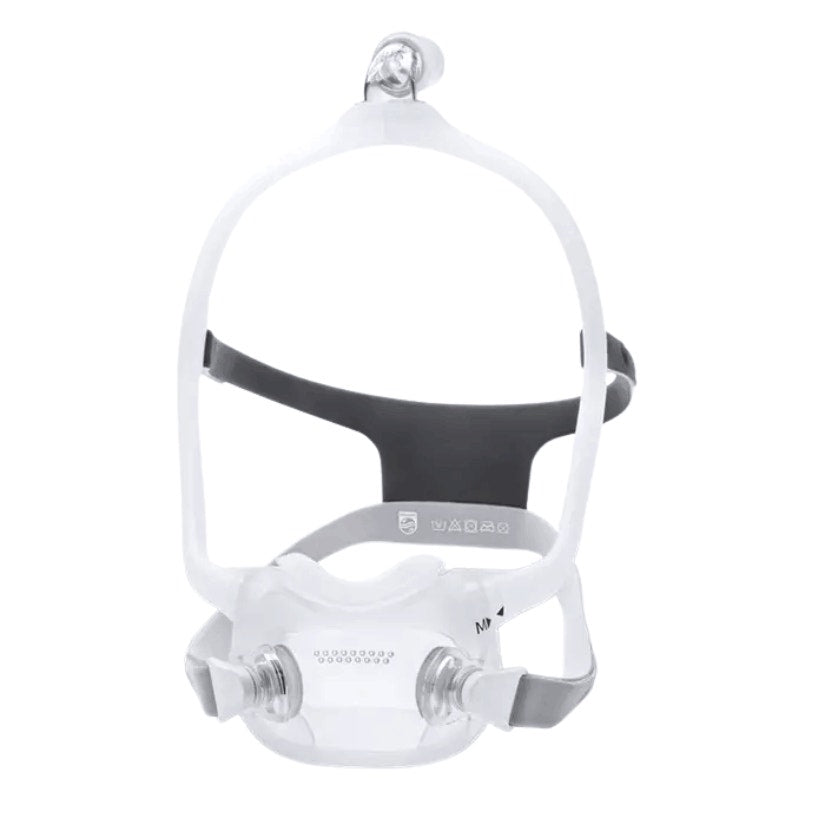

Philips Respironics DreamWear Full Face CPAP Mask
-
Estimated Delivery: Oct 17 - Oct 21
-
Free Shipping & Returns:
On all orders over $75
The Philips Respironics DreamWear Full Face CPAP Mask provides exceptional freedom of movement with an innovative top-of-the-head hose connection and in-frame airflow design. Its minimal-contact, under-the-nose cushion prevents red marks and bridge discomfort while delivering a secure seal for both nose and mouth breathing.
Designed with an open field of vision, this mask lets you read or wear glasses comfortably before sleeping in any position. The modular soft silicone frame accommodates various cushion types, offering a tailored and reliable solution for effective sleep apnea therapy.
Key Features
| Brand | Philips Respironics |
| Product Type | Full Face CPAP Mask |
| Model | pb_FFM-Cush-Frame-DW |
| Frame Material | Silicone |
| Operating Therapy Pressure Range | 3 to 30 cmH²O |
| Prescription Required | No |
| FSA/HSA Eligible | Yes |
Highlights
- Top of the head hose connection for an open field of vision.
- Lightweight in-frame airflow design.
- Minimal contact helps prevents red marks and irritation.
- Provides freedom of movement for stomach and side sleepers.
- Designed for a cozy, custom mask fit.
Materials & care
| Part | Cleaning Frequency | Instructions |
|---|---|---|
| Mask Cushions | Daily | Using a mild detergent and warm, drinking-quality water, gently clean mask cushions to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria. Rinse thoroughly. Allow to air dry, avoiding direct sunlight. |
| Mask Frame | Weekly | Using a mild detergent and warm, drinking-quality water, gently clean mask frame to remove any dirt, debris, and oils. Vinegar solutions (3:1, water:vinegar mix) can be used by soaking for 30 minutes to kill accumulated bacteria. Rinse thoroughly. Allow to air dry, avoiding direct sunlight. |
| Headgear | Weekly | Using a mild detergent and warm, drinking-quality water, gently clean mask headgear to remove any dirt, debris, and oils. Do not use a vinegar solution. Rinse thoroughly. Hang dry, avoiding direct sunlight. |
| Chinstrap | Weekly | Using a mild detergent and warm, drinking-quality water, gently clean mask chinstrap to remove any dirt, debris, and oils. Do not use a vinegar solution. Rinse thoroughly. Hang dry, avoiding direct sunlight. |
Sizing & fit
Frame Size Options:
- Small Cushion/Medium Frame DreamWear Full Mask without Headgear - 1133405
- Medium Cushion/Medium Frame DreamWear Full Mask without Headgear - 1133406
- Large Cushion/Medium Frame DreamWear Full Mask without Headgear - 1133407
- Medium Wide Cushion/Medium Frame DreamWear Full Mask without Headgear - 1133408
- Small Cushion/Small Frame DreamWear Full Mask without Headgear - 1133410
- Medium Cushion/Small Frame DreamWear Full Mask without Headgear - 1133411
- Large Cushion/Small Frame DreamWear Full Mask without Headgear - 1133412
- Medium Wide Cushion/Small Frame DreamWear Full Mask without Headgear - 1133413
- Small Cushion/Large Frame DreamWear Full Mask without Headgear - 1133415
- Medium Cushion/Large Frame DreamWear Full Mask without Headgear - 1133416
- Large Cushion/Large Frame DreamWear Full Mask without Headgear - 1133417
- Med Wide Cushion/Large Frame DreamWear Full Mask without Headgear - 1133418

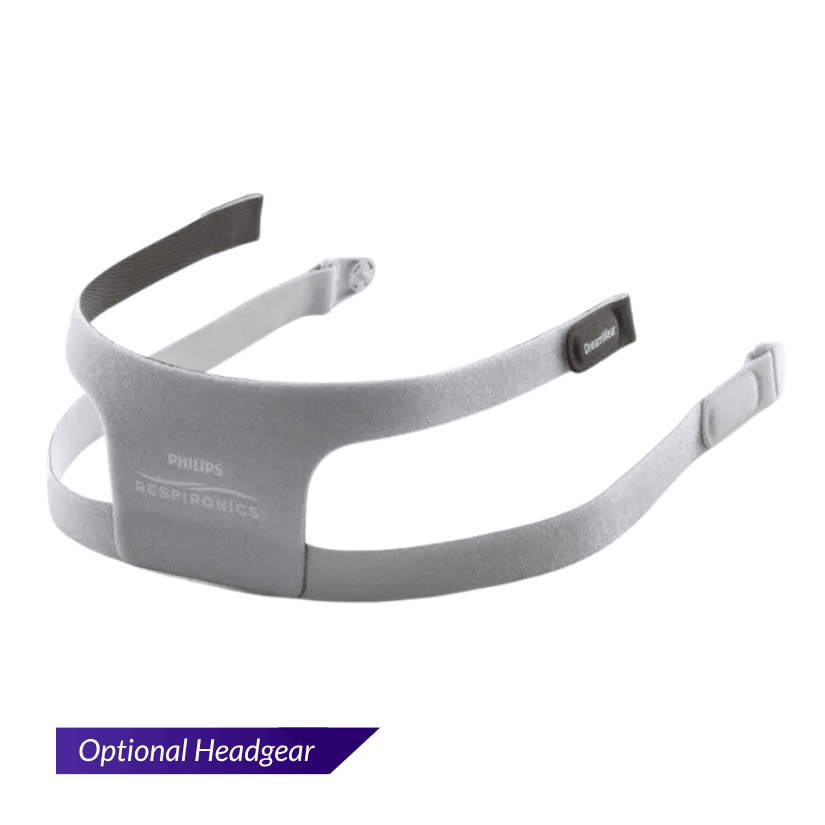

Optional Headgear Sizes:
- DreamWear Full Face Headgear - 1133450
Size chart
Available frame sizes include Small, Medium, and Large. Available cushion sizes include Small, Medium, Large, and Medium Wide.
Compatibility

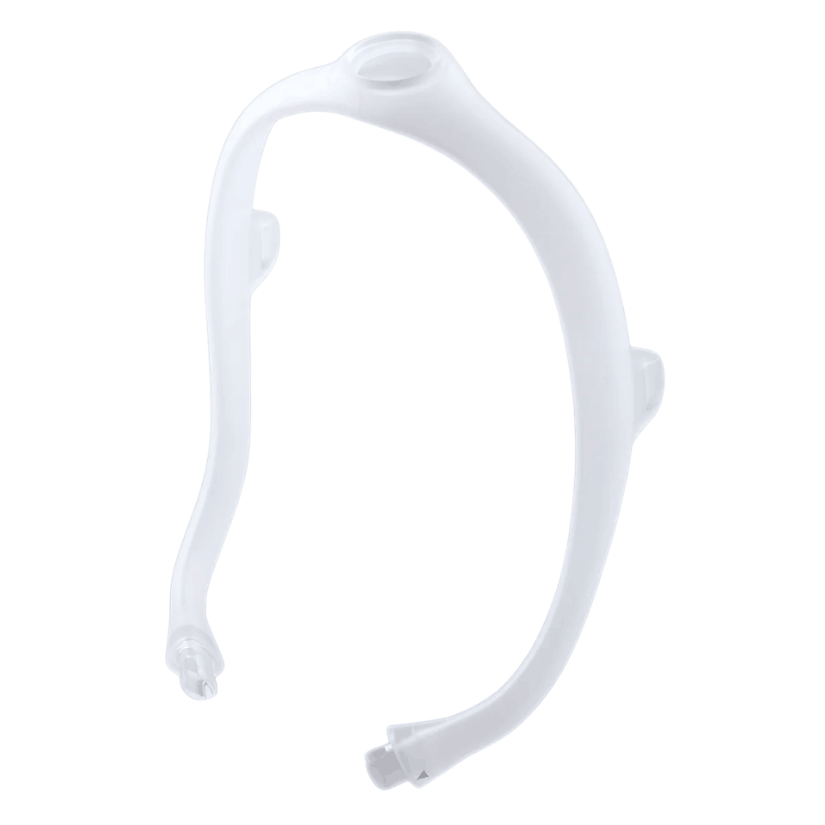

The DreamWear frame is compatible with DreamWear Full Face cushions, DreamWear Nasal cushions, and DreamWear Nasal Pillows cushions.
How to use
Assembling Your Mask
Refer to the assembly diagrams in these instructions.
- Press the Cushion into the Mask Frame until the Cushion clicks into place. (Note: The end of the Cushion and the opening in the Mask Frame are ‘D’ shaped. The Cushion end should match the Frame.)
- Insert the Mask Elbow into the top of the Mask Frame.
- Push the Tubing Quick Release onto the Elbow until it clicks into place.
- (Optional) Fabric Sleeves: Wrap the Sleeves around the Mask Frame and press the strips together. (Note: The Sleeve seams should be on the outside of the Frame)
- Slide the Headgear top strap tabs into the slots on the Mask Frame and fold backwards. Attach the Headgear Clips.
Note: The Philips Respironics logo will be on the outside and facing up when correctly assembled.
Fitting Your Mask
Remove all packaging before using the mask.
- With the Philips DreamWear Full Face Mask assembled, place the Cushion under your nose.
- Position the Frame on the top of your head.
- Pull the Headgear over the back of your head.
- Attach the magnetic headgear clips to the mask cushion.
Disassembling Your DreamWear Full Face Mask
Refer to the disassembly diagrams in these instructions.
- Headgear: Undo the Headgear tabs and pull through the slots in the Mask Frame. Turn the magnetic Headgear Clips away from the Mask Frame.
- Fabric sleeves: Undo the strips and remove from the Mask Frame.
- Tubing quick release: Pull the Tubing Quick Release from the Elbow.
- Elbow: Pull the Elbow from the top of the Frame.
- Cushion: Pull the Cushion away from the Mask Frame
Warranty
90-day limited manufacturer's warranty
What's included
- 1 — DreamWear Full Face Mask Frame (of selected size)

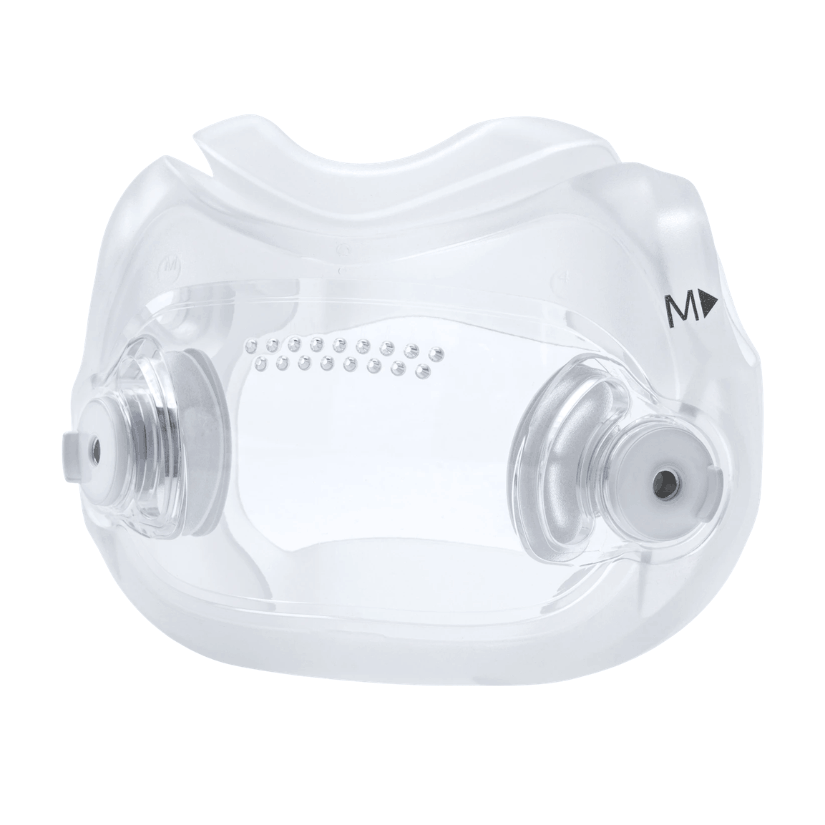

- 1 — DreamWear Full Face Cushion (of selected size)
- 1 — Elbow
- 1 — Tubing Quick Release
- 1 — DreamWear Full Face Mask Headgear (Model # 1133450) (if selected)
- 2 — Magnetic Clips (if headgear selected)
