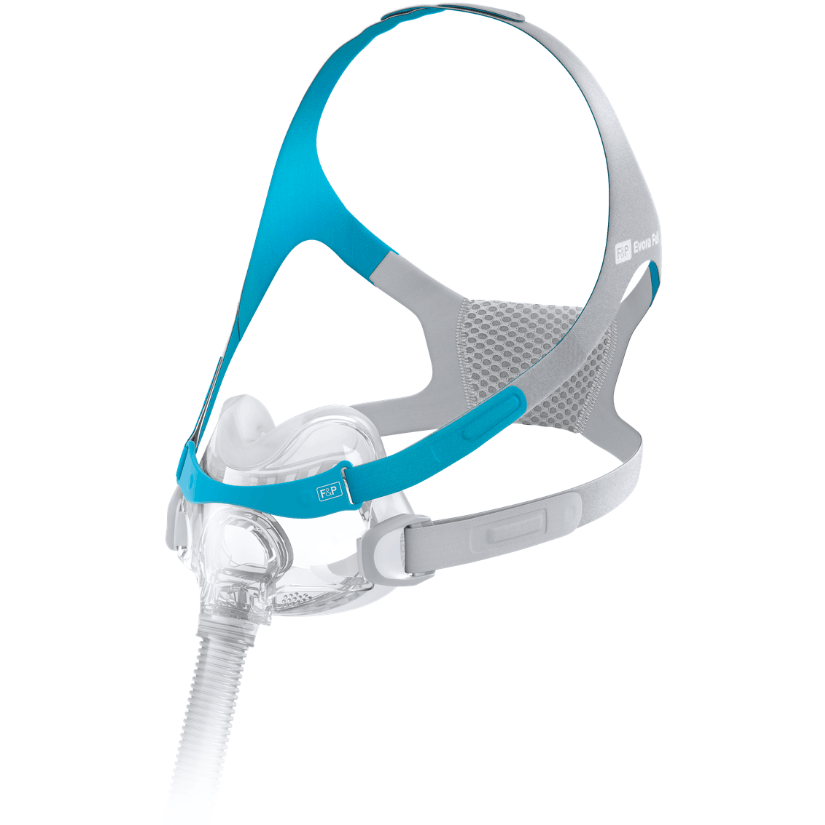

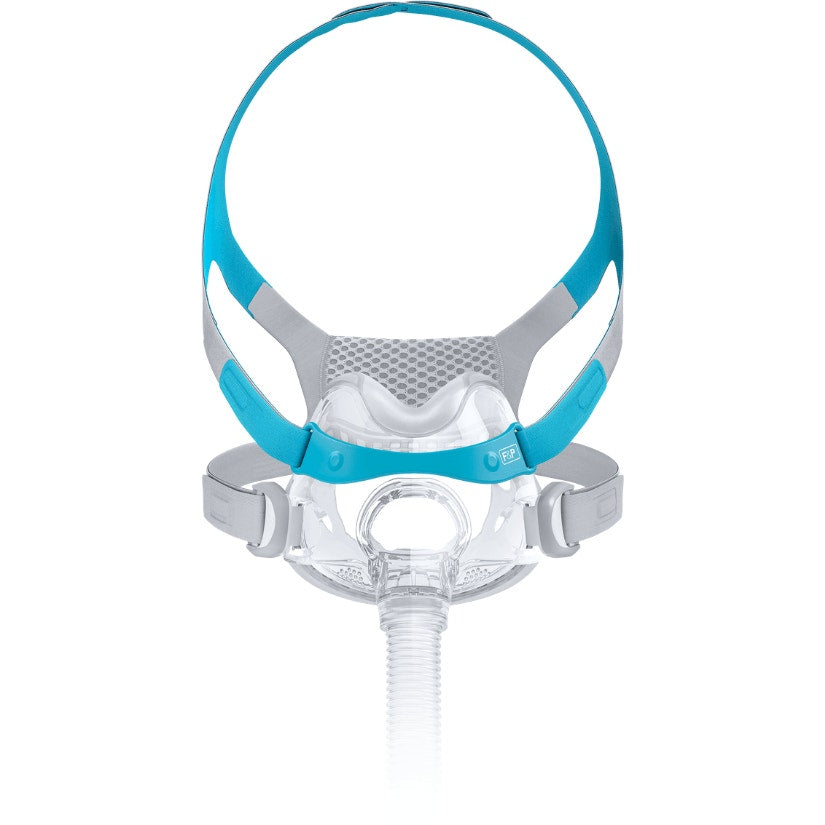

Fisher & Paykel Evora Full Face CPAP Mask

The Fisher & Paykel Evora Full delivers reliable sleep therapy with a compact design that provides minimal facial contact. Designed with an under-the-nose cushion seal, it maintains a secure and comfortable fit while keeping your line of sight completely clear for reading or watching television before sleep.

Crafted to accommodate various sleeping styles including back and side sleepers, this mask effectively minimizes pressure across the face while operating quietly throughout the night. Soft silicone materials and structured framing work together to prevent leaks, making it an excellent choice for mouth breathers and individuals requiring high pressure settings.

Key Features

Highlights

• Minimal Design: The minimal design of the under-the-nose seal provides a clear line of sight.
• Comfortable seal: Soft thin silicone sits comfortably under your nose to minimize pressure, while the structured frame provides a stable seal.
• Breathable comfort: Headgear with VentiCool™ technology allows heat and moisture to escape from the head for a comfortable night’s sleep.
• Sleep quietly: Designed to minimize noise, helping your sleep apnea treatment

Materials & care

Sizing & fit

• Extra Small - Evora™ Mask System - without Headgear - 400EVF131
• Small/Medium - Evora™ Mask System - without Headgear - 400EVF132
• Large - Evora™ Mask System - without Headgear - 400EVF133
• Standard - Evora™ Full Face Mask Headgear - 400EVF121
• Extra-Large - Evora™ Full Face Mask Headgear - 400EVF122
• Headgear clips (400EVF141) are included with the headgear.

Size chart

• Extra Small: Evora Mask System (without Headgear) - 400EVF131
• Small/Medium: Evora Mask System (without Headgear) - 400EVF132
• Large: Evora Mask System (without Headgear) - 400EVF133
• Standard: Evora Full Face Mask Headgear - 400EVF121
• Extra Large: Evora Full Face Mask Headgear - 400EVF122

Compatibility

• Breathing Style: Mouth Breathers
• Sleeping Style: Back Sleepers, Side Sleepers
• Additional Considerations: High Pressure Settings, Chronic Allergies or Nasal Congestion

How to use

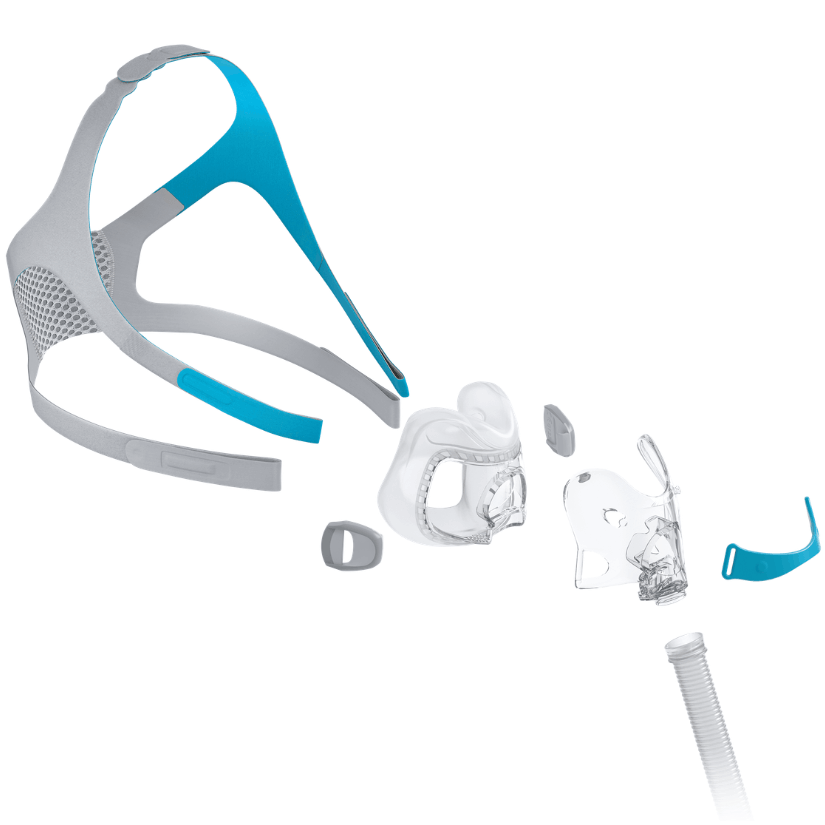

Assembling Your Mask:

1. Push the Seal (A) firmly into place on the Frame (B) to click into place.
2. Push the Tube (G) onto the Frame (B) to click into place.
3. Push the Swivel (E) onto the Tube (G) to click into place.
4. Connect the Frame Clip (F) to the Frame (B) to click into place.
5. Hook the Headgear Clips (D) onto the Frame (B) to click into place.

Fitting Your Mask:

1. Ensure that both Headgear Clips are unhooked from the Frame.
2. Place the Seal onto your face and guide the Headgear over your head.
3. Hook both Headgear Clips onto the Frame.
4. Gently tighten the Headgear straps, starting with the blue upper straps, followed by loosely fitting the lower straps.
5. Connect the Tube with the Swivel to the PAP tube. Turn on the PAP device. Repeat step 4 until the mask seals and the Seal feels comfortable on your face. If you are experiencing mask leaks, you may need to lift the Seal off your face and reposition it. If the Headgear touches the ear, adjust the straps on the top of your head.

Disassembling Your Mask:

1. Unhook both Headgear Clips (D) from the Frame (B).
2. Pull the Frame Clip (F) from the Frame (B), but leave it attached to the Headgear (C).
3. Pull the Seal (A) from the Frame (B).
4. Pull the Tube (G) from the Frame (B).
5. Pull the Swivel (E) from the Tube (G).

Useful Tip: Check the Swivel (E) is not stuck in the PAP tube

Warranty

90-day limited manufacturer's warranty

What's included

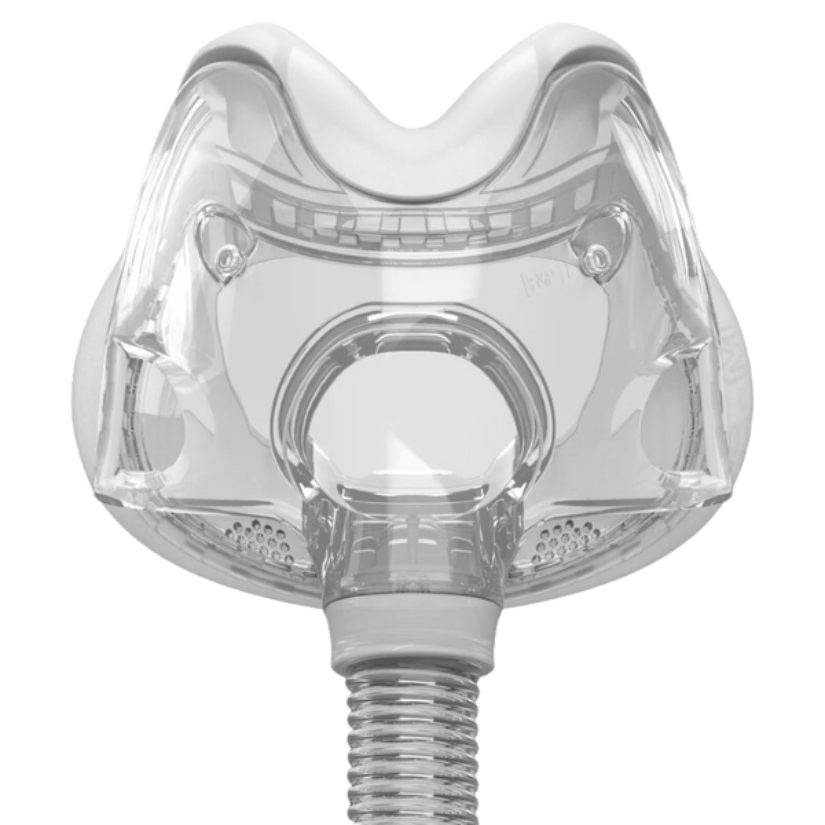

• 1 — Evora™ Full Face CPAP Mask Frame

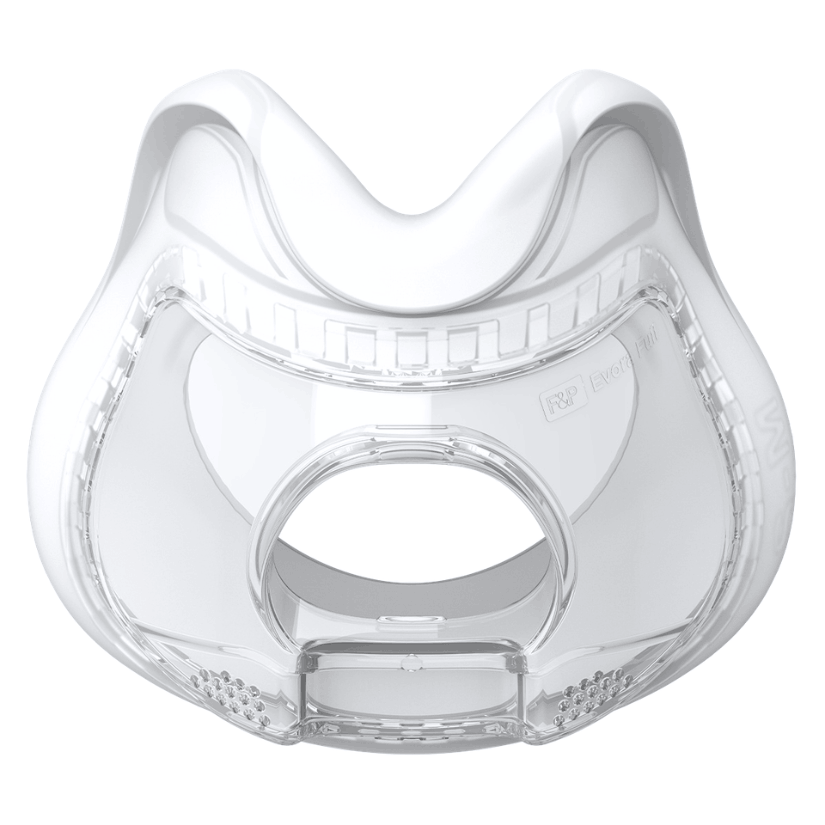

• 1 — Evora™ Full Face CPAP Mask Cushion (of selected size)
• 1 — Short Tube
• 1 — Swivel

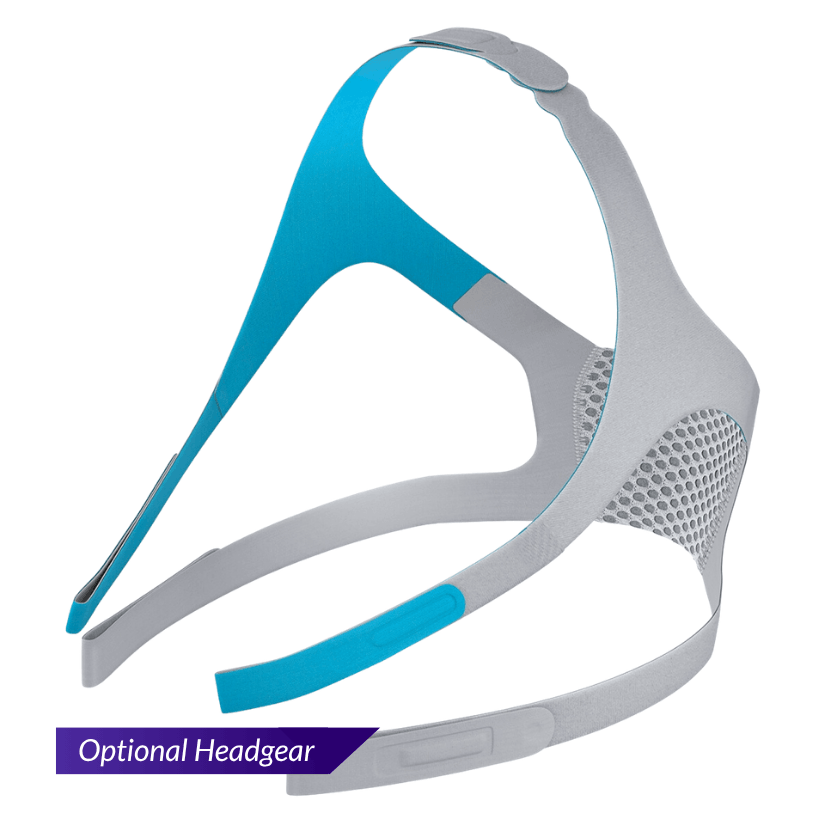

• 1 - Evora™ Full Face Mask Headgear
• 2 - Headgear Clips
